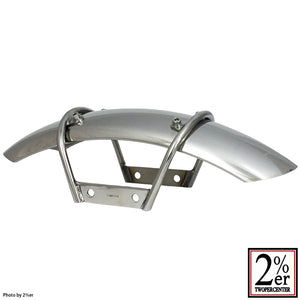

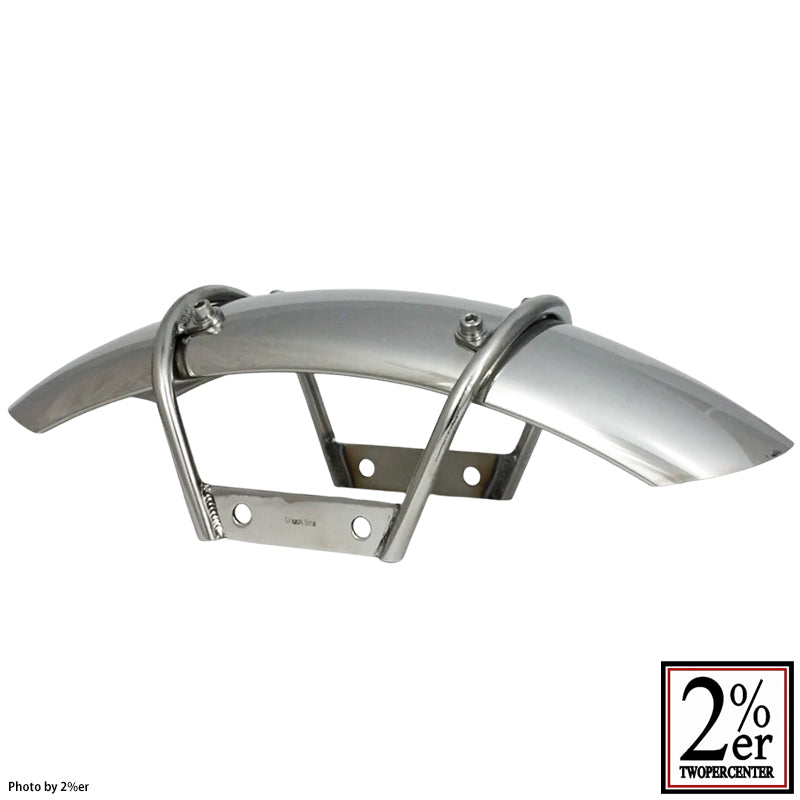

High-strength, high-rigidity all-stainless steel fenders
Handmade many high quality custom parts in SR Cafe racer style Front fender made by CHUCKBOX.
The stays are made of 2.0mm thick 10Φ stainless steel tubes and hand-bent.
It is simple, beautiful, and bold.
The stay plate part is 3.0mm. In the case of SR, long bolt holes are not used because of the long stay legs, and 9.0mm round holes are used to secure the strength of the stay plate.
The arched, hand-bent thick stainless steel pipe and the treatment of the plate part make the stainless steel pipe and the plate part stronger and more durable.
Compared to a typical fender with flat stays, the torsional rigidity of the front fork is greatly improved.
The fender itself has ribs on the inside of the left and right sides for safety, and deep arches for strength.
To ensure super durability, 6mm cap bolts are used to fasten the fender body to the stays, and 6mm cap bolts are used to fasten the fender body to the stays.
Flat washers are placed at the top and bottom, and a U-nut (non-looseness nut) is provided for perfect torsion resistance.
The plate that holds the fender body and stay is 3.0mm thick flat welded all around the arch pipe.
There is no cost-cutting method in mass-produced fenders.
This is a handmade chuck box made with the utmost care and attention to detail.
:Basically, we can order all parts from all manufacturers and parts not listed here.
:Please note that due to the handmade production by a single craftsman, delivery
may take longer if the product is not in stock. (7-28 days)
Material ： Stainless steel (including bolts/nuts)
Contents : Main unit x 1
Manufacturer ：CHUCK BOX
Applicable model : SR400/500 18-inch model
